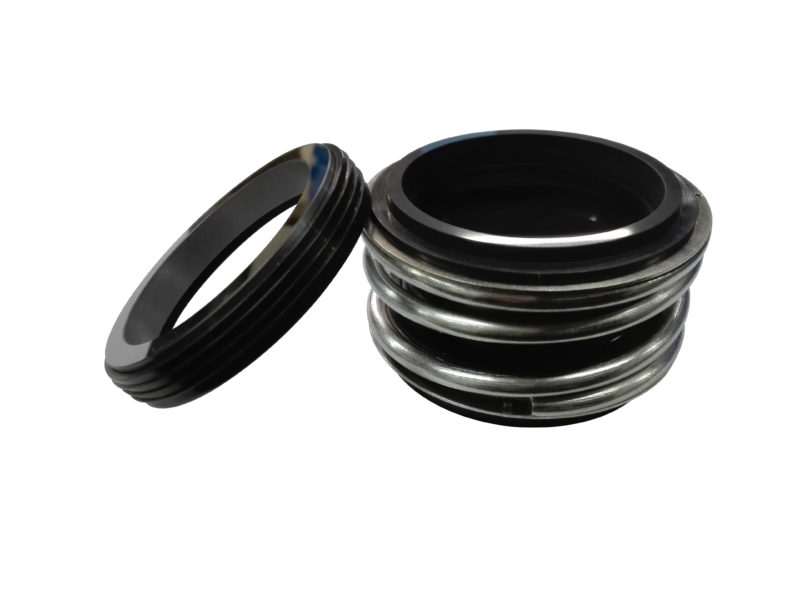

SNG 171
Cylindrical spring mechanical seal, single, bidirectional, unbalanced. With elastomeric bellows. Can be used in a wide range of machinery and applications. It can be coupled with different types of stationary parts according to the specific assembly requirements.
Operating conditions
T = -30°C to + 220°C
P = 0 to 12 Bar
V = 12 m/sec
Materials sealing faces rotating and stationary part
Silicon carbide
Graphite resin
Antimony graphit
Aluminium oxide
Elastomers
NBR
FKM
EPDM
NOTE : possibility of using other materials according to specific needs.
