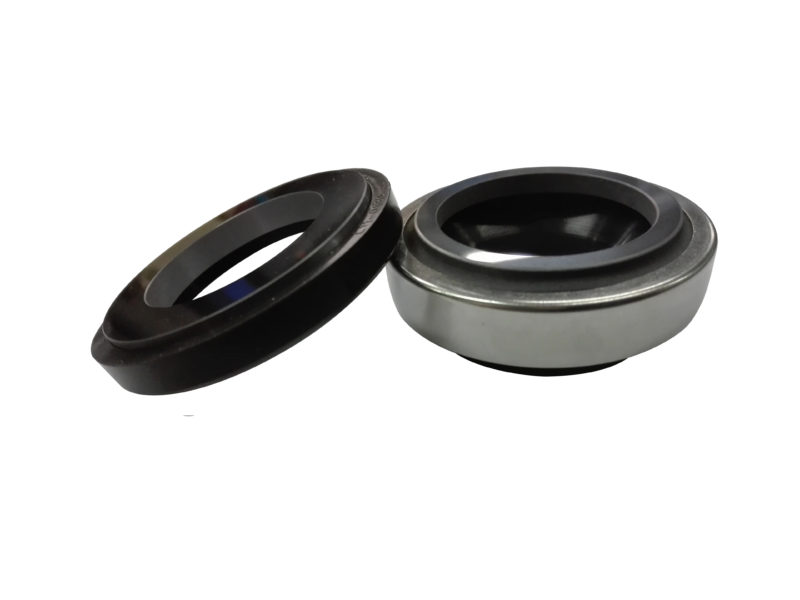

SNG 200
Single spring, bi-directional, unbalanced mechanical seal. With elastomeric bellows embedded in a steel jacket. Can be used in a wide range of machinery and applications. It can be coupled with different types of stationary parts according to the specific assembly requirements.
Operating conditions
T = -20°C to +100°C
P = 0 to 6 Bar
V = 0 at 15 m/sec
Materials sealing faces rotating and stationary part
Silicon carbide
Graphite resin
Antimony graphite
Aluminium oxide
Elastomers
NBR
FKM
EPDM
NOTE : possibility of using other materials according to specific needs.
